Reliable Molybdenum Products for High-Temperature & Industrial Use
Five Elements Metal supplies precision molybdenum plates, rods, wires, tubes, and machined components with high thermal stability, strength, and excellent corrosion resistance—ideal for aerospace, furnace, electronics, and metallurgical industries.
Molybdenum products 1
Molybdenum products 2
Molybdenum products 3
Molybdenum products 4
Molybdenum products 5
Molybdenum products 6
Customized Molybdenum Product Specifications
| Product Type | Size Range | Grade(s) | Standards |
|---|---|---|---|
| Molybdenum Sheet / Plate | Thickness: 0.1mm – 40mm Width: ≤600mm | Mo1 (≥99.95%) | ASTM B386 |
| Molybdenum Rod / Bar | Diameter: Ø2mm – Ø150mm | Mo1, TZM | ASTM B387 |
| Molybdenum Wire | Diameter: Ø0.05mm – Ø3mm | Mo1, Mo-La | ASTM F289 |
| Molybdenum Tube / Pipe | OD: Ø4mm – Ø100mm Wall Thickness: 0.5mm – 6mm | Mo1 | Custom/ASTM Based |
| Machined Components | Based on customer drawings | Mo1, TZM, Mo-Cu | As required |
Molybdenum Product Application

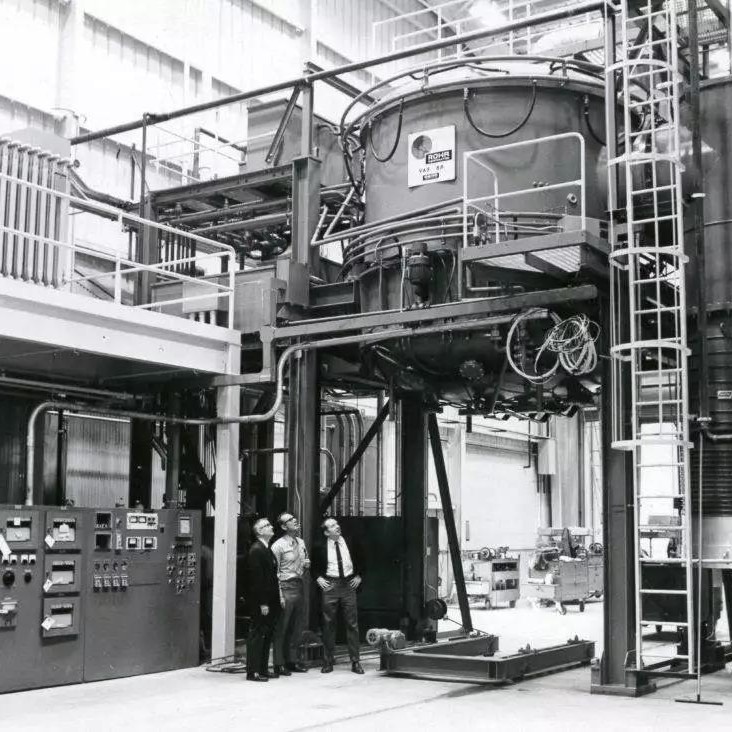

High-Temperature Furnaces
Aerospace & Defense
Electronics & Semiconductors

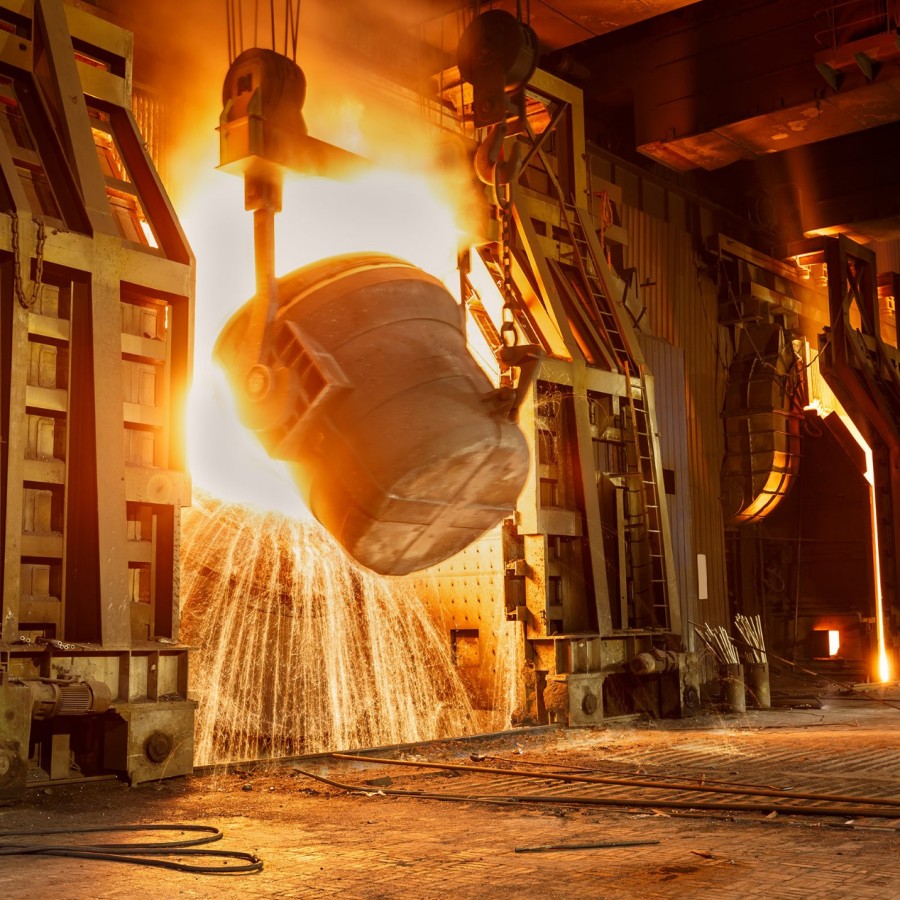

Metallurgical Industry

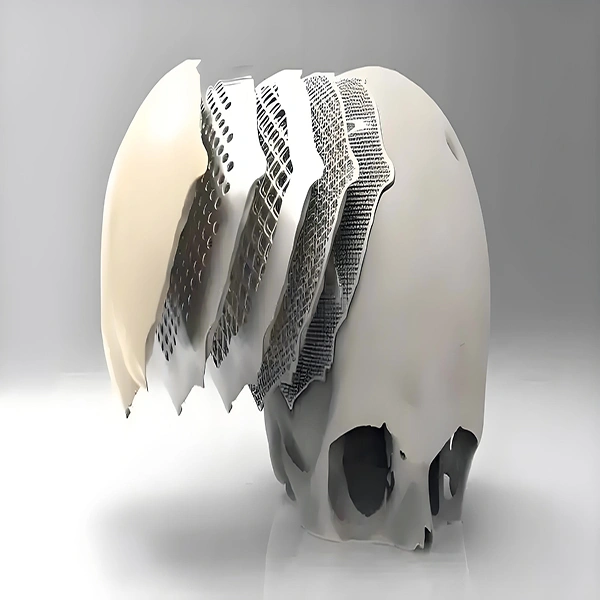

Medical Imaging & Radiation Shielding
Chemical Processing Equipment
Our Core Advantages in Molybdenum Manufacturing
High-Temperature Performance
Our molybdenum materials retain mechanical strength and stability at temperatures exceeding 1,900°C, ideal for aerospace and thermal applications.
Certified Purity & Traceability
We provide high-purity molybdenum (≥99.95%) with full material traceability and compliance with ASTM B386, B387, and GB/T standards.
Custom Machining Capabilities
From rods to complex CNC parts, our facility can deliver molybdenum products tailored to your exact design, tolerances, and surface finish.
Comprehensive In-House Testing
We perform chemical analysis, ultrasonic inspection, mechanical testing, and more—all under strict quality control systems.

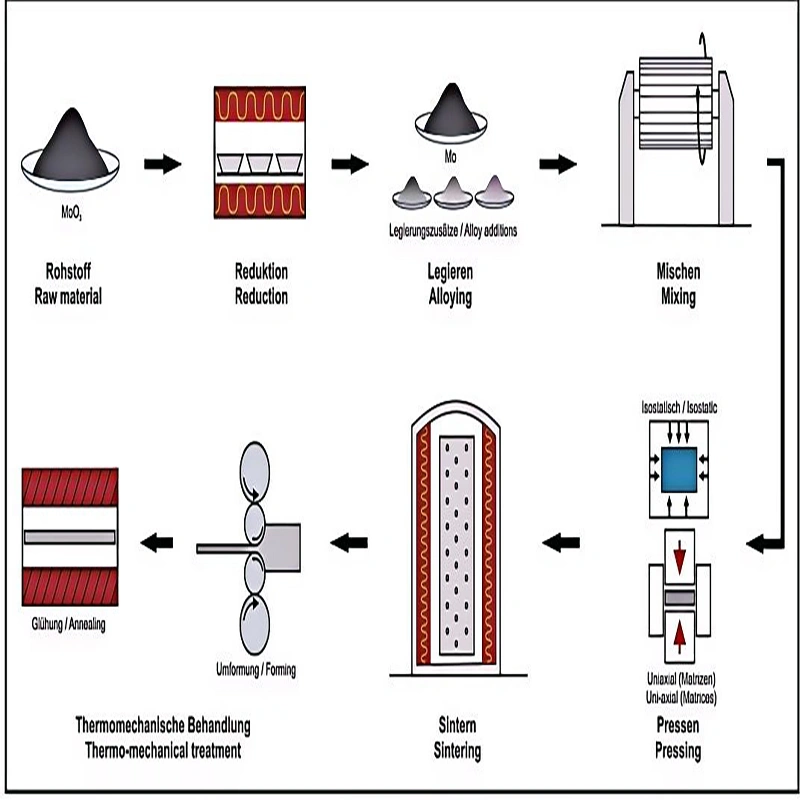

Molybdenum Product production process
Raw Material Selection – Sourcing of high-grade molybdenum powder or ingots.
Powder Metallurgy & Sintering – Pressing and sintering under vacuum or hydrogen to create solid billets.
Hot Rolling & Forging – Billets are shaped into plates, rods, or sheets with high strength.
Annealing & Cold Working – To adjust mechanical properties and final dimensions.
Precision Machining – CNC or EDM machining into parts or custom forms.
Inspection & Packaging – Final products are tested, cleaned, and safely packed for export.
Molybdenum Product Quality Testing
Chemical Composition Analysis
XRF and ICP methods are used to verify molybdenum purity and ensure trace elements like Fe, Ni, and O remain within required limits.
Mechanical Testing (Tensile & Hardness)
Tensile strength, yield point, and elongation are tested under standard ASTM protocols to ensure structural integrity.
Ultrasonic & Visual Inspection
To detect internal cracks, delamination, or structural inconsistencies, ultrasonic testing is carried out alongside surface quality inspections.
Frequently Asked Questions
What is the purity level of your molybdenum products?
We offer ≥99.95% pure molybdenum, suitable for both industrial and scientific applications. Higher purity can be provided on request.
Can I order TZM or doped molybdenum?
Yes, we provide TZM alloy (Titanium-Zirconium-Molybdenum) and Lanthanum-doped Mo (Mo-La) for high-stress and high-temperature conditions.
Do you offer CNC machining for molybdenum parts?
Absolutely. We provide custom fabrication according to your CAD drawings, including turning, drilling, threading, and EDM.
What’s your typical lead time for molybdenum products?
Do you support third-party testing?
Yes, we can provide SGS, BV, or customer-specified third-party reports along with our own factory test certificates.
